Dell Ultrasharp U2424HE - 24 Inch USB-C Hub Monitor

Product Description

Experience improved visual comfort, peak productivity and extensive connectivity with this hub monitor certified by TÜV for 4-star eye comfort.

Unparalleled visual comfort
Ambient Light Sensor: A built-in Ambient light sensor intelligently optimises brightness and colour temperature based on your surroundings.

Improved ComfortView Plus: Reduces harmful blue light emissions to <35%, for all-day comfort without sacrificing colour accuracy.

A smoother visual experience: A 120Hz refresh rate delivers less flicker, more seamless scrolling and smoother motion than 60Hz monitors.

Work vibrantly
Vivid colour: Enjoy 1.07 billion colours and a wide colour coverage across industry standards, including 85% DCI-P3, 100% sRGB and 100% BT.709. Get colour calibration accuracy of Delta E < 2 (average) (sRGB, BT.709).

Stable connection: Enable fast Ethernet with speeds of up to 2.5GbE.

Streamline your workflow: A single USB-C cable transmits data and video signals while delivering up to 90W of power.

Reach peak productivity: Connect to two PC sources and Auto KVM will seamlessly switch controls over to the second connected PC. Use KVM (keyboard, video and mouse) features to control both PCs with a single keyboard and mouse.

Extend your connectivity: Connect to more with DisplayPort 1.4, HDMI (HDCP 1.4)(supports up to FHD 1920 x 1080 120Hz TMDS as specified in HDMI 1.4), USB-A and USB-C ports that provide speeds of up to 10Gbps.

Connect with ease: Simply plug in accessories and devices with a quick access USB-A port and a USB-C port that delivers up to 15W of power.

Expand your perspective
Experience uncompromised picture quality by daisy chaining two monitors.

Designed for comfort
Fit your work style: Tilt, swivel, pivot and adjust the height of your monitor to work your way.

Stay focused on your work: Our InfinityEdge screen provides a virtually borderless experience.

Work beautifully: A premium platinum silver finish enhances any workspace.

Dell Display Manager
Easy management. Next-level productivity.

Improved multitasking: Organize your screen with Easy Arrange and save profiles with Easy Arrange Memory.

Easy navigation: Share a single keyboard, mouse and monitor between multiple PCs with USB KVM wizard. Quickly switch between PCs with the quick-access menu or hot keys.

Smooth deployment: Manage your fleet of monitors with features that are automatic, comprehensive and compatible with several tools.

Convenient customization: Quickly access your favorite features and functions with the menu launcher and hot keys.

Green thinking for today and tomorrow
Environmental standards: This monitor uses 85% PCR (post-consumer recyclable) plastic and 90% recycled aluminum in the design. It meets the latest environmental standards such as EnergyStar and TCO Certified Edge and is EPEAT Gold registered.

Eco-conscious packaging: Dell monitors ship in boxes made with 100% renewable content that is also 100% recyclable.

Energy conservation: Save energy with PowerNap, a feature that dims or puts your monitor to sleep when not in use.

Advanced sustainability: Dell Technologies is committed to reducing environmental impact throughout the product lifecycle.

Works with devices on macOS*
Tested with devices on macOS, this USB-C monitor is ready-to-work with Mac devices.

*Based on internal testing of select Dell monitors with USB-C or HDMI connection to devices on macOS, June 2024. Requires USB-C or HDMI connectivity. Some features may not be supported.

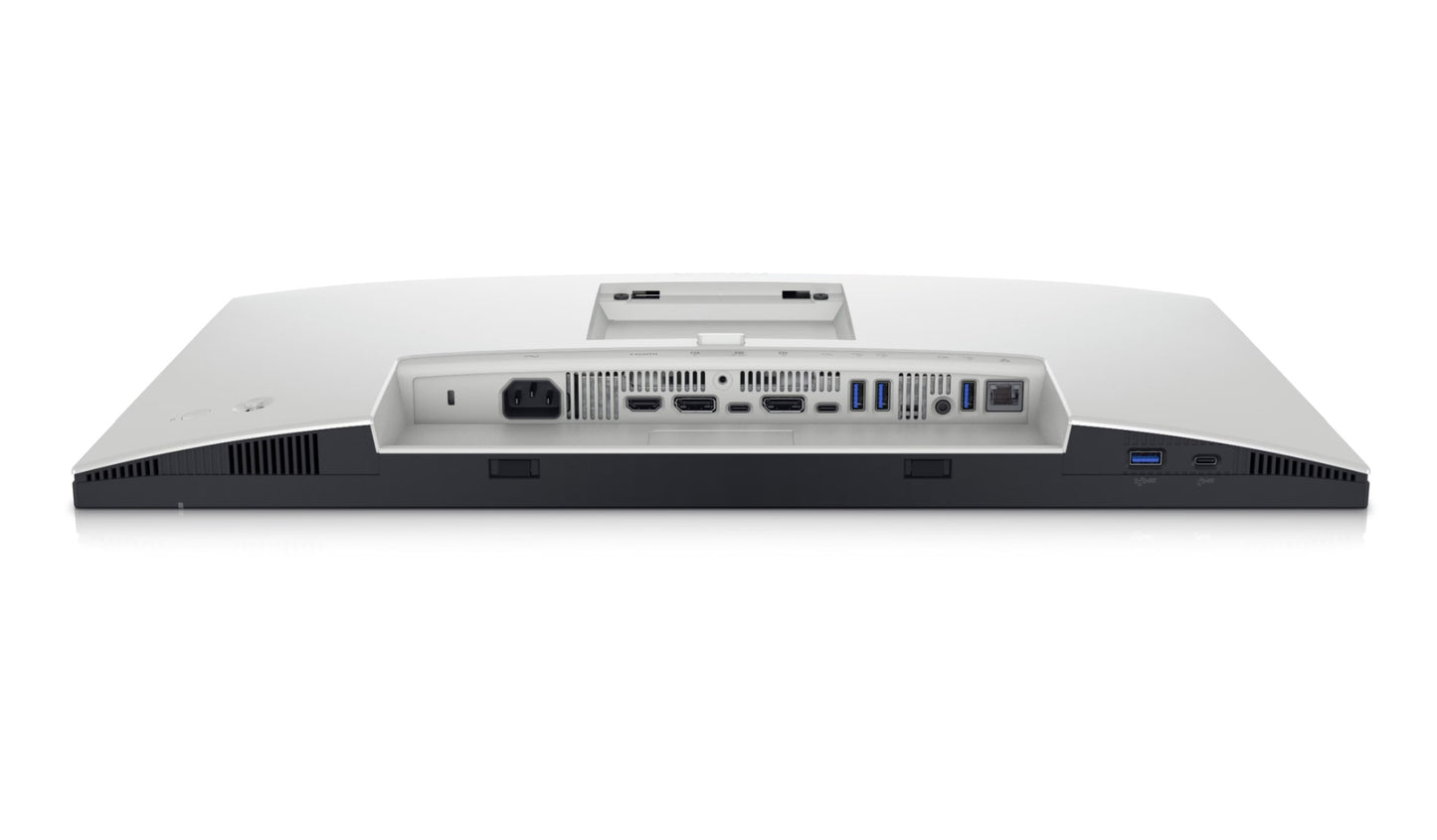

Connectivity Options

Ports & Slots

1. Security lock slot (based on Kensington Security Slot)
2. Power connector
3. HDMI (HDCP 1.4)(supports up to FHD 1920 x 1080 120Hz TMDS as specified in HDMI 1.4)
4. DisplayPort 1.4
5. Stand lock
6. USB Type-C upstream port (Video + Data). Alternate mode with DisplayPort 1.4, power delivery up to 90W.
7. DisplayPort 1.4 (out)
8. USB Type-C upstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2)
9. 2x USB Type-A downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2)
10. Audio line out
11. USB Type-A downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2)
12. RJ45 port
13. USB Type-A downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2) with BC1.2 power charging
14. USB Type-C downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2) with power charging (15W)

Tech Specs

General

Diagonal Viewing Size
604.70 mm
23.80 inches

Preset Display Area (H x V)
527.04 mm x 296.46 mm
20.75" x 11.67"
156,246.27 mm2 (242.15 inches)

Panel Type
IPS

Display Screen Coating
Anti-Glare with 3H hardness

Maximum Preset Resolution
1920 x 1080 at 120 Hz

Viewing Angle
178°vertical / 178°°horizontal

Pixel Pitch
0.2745 mm x 0.2745 mm

Pixel Per Inch (PPI)
92.53

Contrast Ratio
1000 to 1 (typical)

Aspect Ratio
16:9

Backlight Technology
LED Edgelight System

Brightness
250 cd/m2 (typical)

Response Time
8 ms (Normal)
5 ms (Fast)

HDR Ready
No

Ambient Light Sensor
Yes, auto brightness and color temperature adjustmemt

Color Support
16.7 million colors

Color Gamut
100% sRGB, 100% BT.709, 85% DCI-P3, Delta E < 2 (average) (sRGB and BT.709)

Interfaces
1 x DisplayPort version 1.4 (DRR for Microsoft Windows) (HDCP 1.4) (supports up to FHD 1920 x 1080 120 Hz)
1 x HDMI (HDCP 1.4)(supports up to FHD 1920 x 1080 120Hz TMDS as per specified in HDMI 1.4)
1 x DisplayPort 1.4 (Out) with MST (HDCP 1.4)
1 x USB Type-C upstream port (video and data) (Alternate mode with DisplayPort 1.4, Power Delivery PD up to 90 W)
1 x USB Type-C upstream port (data only, 10 Gbps USB 3.2 Gen2)
3 x USB Type-A downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2)
1 x Audio line out
1 x RJ45 port

Quick Access:
1 x USB Type-C downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2) with power charging (15W)
1 x USB Type-A downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2) with BC1.2 power charging

Adjustability
Height, Tilt, Swivel, Pivot

Height adjustable
150 mm

Tilt - -5°/+21°
Swivel - -45°/+45°
Pivot - -90°/+90°
PbP / PiP - No
Keyboard, Video and Mouse ( KVM) - Yes
Daisy Chain Availability - Yes
Audio Output - 1 x Audio line-out
Built-in Speaker - No

Security
Security lock slot (cable lock sold separately)
Anti-theft stand lock slot (to lock stand to monitor using screw)

Compliant Standards
ENERGY STAR certified monitor
EPEAT registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by country. RoHS-compliant
TCO Certified & TCO Certified Edge
BFR/PVC free monitor (excluding external cables)
Arsenic-free glass and Mercury-free for the panel only

Flat Panel Mount Interface
VESA mounting holes (100 mm x 100 mm - behind attached VESA Cover)

Voltage Required

100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 2.2 A (typical)

Power Consumption (On mode) - 14.5 W
Power Consumption (Max) - 210.0 W
Power Consumption Stand by - 0.5 W
Power Consumption (Off Mode) - 0.3 W
Networked standby mode - 1.5 W

Dell Display Manager Compatibility
Yes , Easy Arrange, Other key features

Temperature Range
Operating: 0°C to 40°C (32°F to 104°F)
Non-operating: –20°C to 60°C (–4°F to 140°F) - Storage and Shipping

Humidity Range
Operating: 10% to 80% (non-condensing)
Non-Operating: 5% to 90% (non-condensing) - Storage and Shipping

Altitude
Operating: 5000 m (16404 ft) max
Non-Operating: 12192 (40000 ft) max

Physical Characteristics
Height with stand (Compressed ~ Extended) - 364.00 mm ~ 496.53 mm
Width with stand - 538.64 mm
Depth with stand - 181.75 mm
Height without stand - 311.21 mm
Width without stand - 538.64 mm
Depth without stand - 49.10 mm
Weight (panel only - for VESA mount) - 3.98 kg
Weight (with stand assembly and cables) - 5.91 kg
Weight (with packaging) - 8.45 kg
